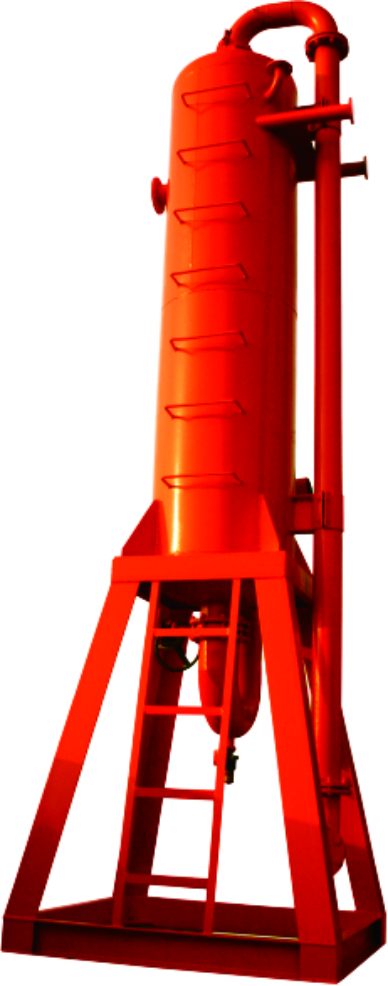

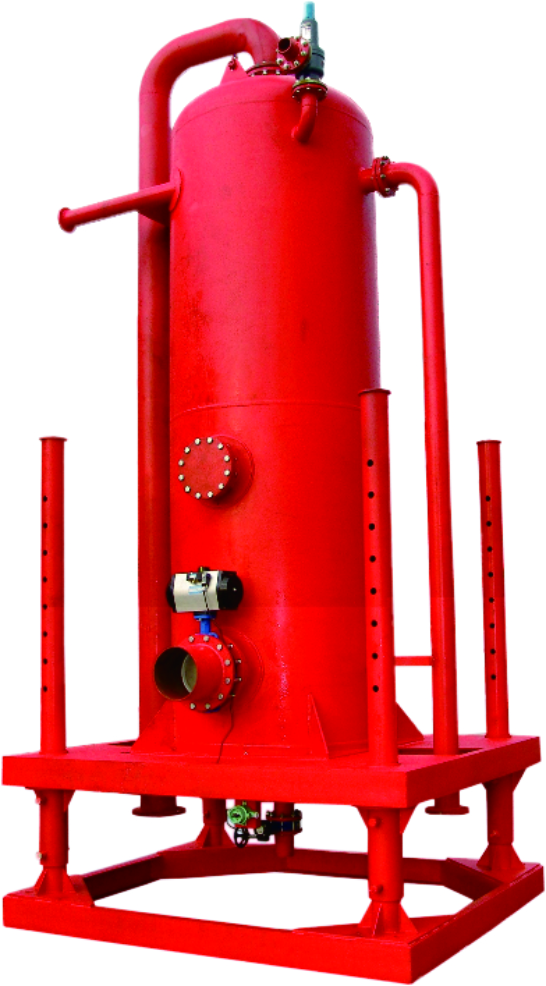

^液气分离器：Liquid Gas Seperator^
液气分离器是与节流管汇配套使用，用于脱离钻井液中游离气体，可应用于欠平衡钻井和含硫化氢气体的钻井液处理。传统分离器液位和压力的控
功能详情 技术参数
西安华扬油气设备有限公司液气分离器产品特点Features and Benefits：
HYZYQ系列液气分离器是专门去除泥浆中气体，稳定泥浆比重，降低井喷事故的主要设备。液气分离器在钻探深层井位和气井井位是必须配备的设备。使用时需要和电子点火装置联合使用燃烧钻井过程中产生的可燃性有害气体。（HYZYQ series liquid-gas separator is specifically designed to remove mud gas , stabilized the mud weight, The main equipment to reduce the blowout. Liquid-gas separator in deep-well drilling gas wells were to be equipped with the device. When combined with electronic ignition burning flammable harmful gases produced in the drilling process.）
HYZYQ系列液气分离器是专门去除泥浆中气体，稳定泥浆比重，降低井喷事故的主要设备。液气分离器在钻探深层井位和气井井位是必须配备的设备。使用时需要和电子点火装置联合使用燃烧钻井过程中产生的可燃性有害气体。（HYZYQ series liquid-gas separator is specifically designed to remove mud gas , stabilized the mud weight, The main equipment to reduce the blowout. Liquid-gas separator in deep-well drilling gas wells were to be equipped with the device. When combined with electronic ignition burning flammable harmful gases produced in the drilling process.）
| 型号Model | HYZYQ800 | HYZYQ1000 | HYZYQ1200 |
| 处理量Capacity | 180㎥/h | 240㎥/h | 320㎥/h |
|
主体直径 Main body Diameter |
800mm | 1000mm | 1200mm |
| 进液管Inlet Pipe | DN100mm | DN125mm | DN1250mm |
| 出液管Output Pipe | DN150mm | DN200mm | DN250mm |
|
排气管 Gas Discharge pipe |
DN200mm | DN200mm | DN200mm |
| 重量Weight | 1750kg | 2235kg | 2600kg |
|
外形尺寸 Dimensions |
1900×1900×5700mm | 2000×2000×5860mm | 2200×2200×6634mm |
