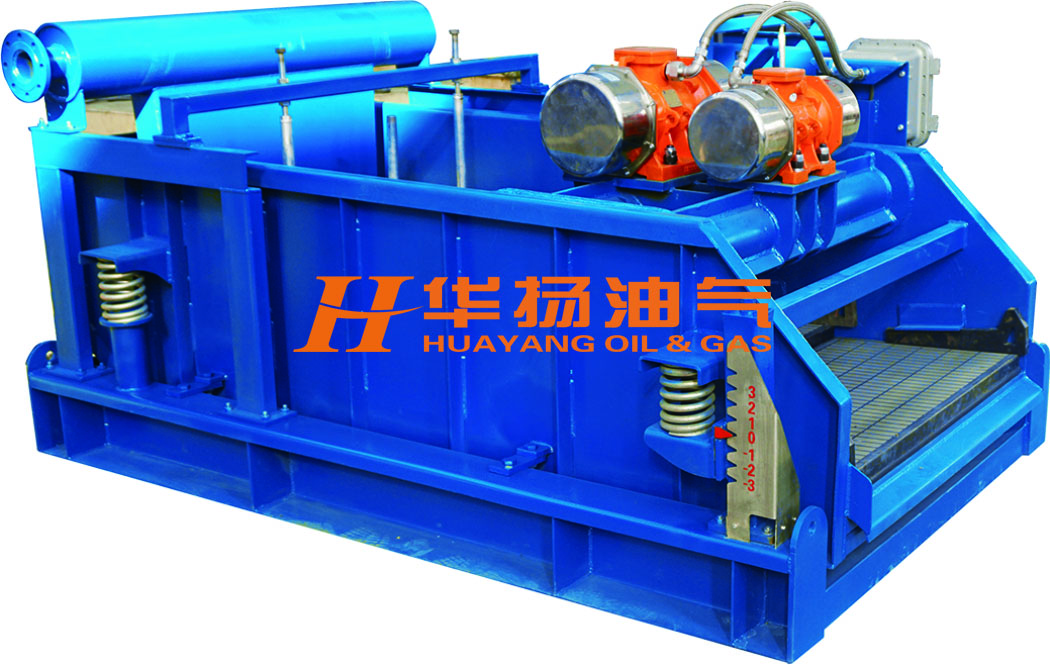

Drying Shaker
| Model | HYPS585G | HYZS585G |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion |
| Treatment Capacity | 140m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94KW×2 |
| Screen Specs. | （585×1165mm）×4 | （585×1165mm）×4 |
| Screen Area | 2.7m² | 2.7m² |
| Vibration Strength | ≤8.5G（可调） | ≤8.5G（可调） |
| Double Amplitude | 7mm | 7mm |
| Deck Adjustment | -3°～+3° | -3°～+3° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX | |
| Weight | 1618kg | 1600kg |
| Dimension | 2600×1645×1380mm | 2600×1645×1480mm |
Features and Benefits：
1 Adjustable G force up to 8.0, drying solids discharge more effcient
2 Mechanical shaker deck angle adjustable while working
3 Heat treatment on complete shaker deck for High G force operation.
4 Patent tighten rubber sealing for shaker deck and screen, easy replacement
5 Famous Brand Vibration Motors : Martin or Oli
6 International brand Siemens or Schneider
7 Low Height Hopper more easier for cuttings Feeder
