location： Home > english > Products > Solid Control Equipment >

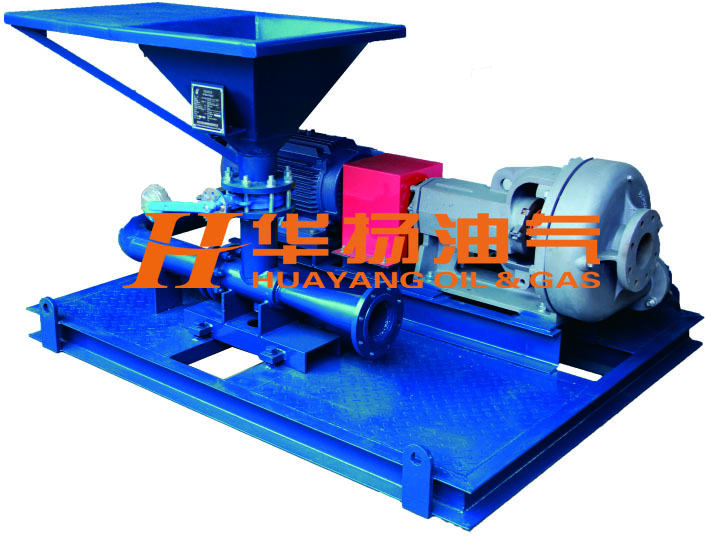

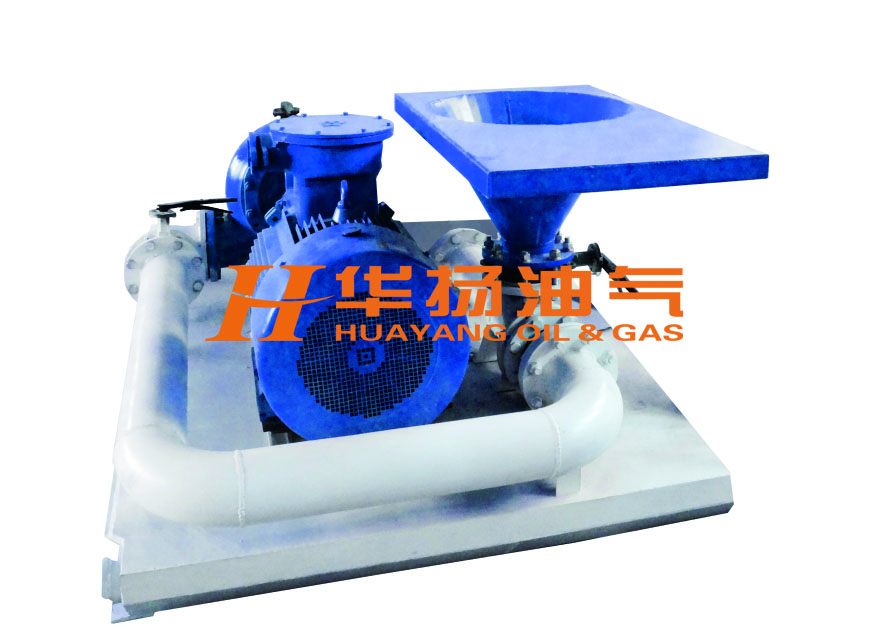

Jet Mud Mixer
source：西安华扬油气设备有限公司 time：2017-10-25
Model HYSLH150-50 HYSLH150-40 HYSLH150-30 HYSLH100
Capacity 240㎥/h 180㎥/h 120㎥/h 60㎥/h

Matching Pump		 TRSB8×6-13J TRSB6×5-13J TRSB5×4-14J TRSB4×3-11J

Motor Power		 55kW 45kW 37kW 11kW

Work Pressure   		 0.25～0.4MPa
Inlet 150mm 150mm 150mm 100mm

Nozzle Caliber		 50 40 30 25

Hopper Dimension		 750×750mm 750×750mm 600×600mm 500×500mm

Burden Speed		 ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg

Dimensions		 2200×1700×1200mm 2200×1700×1200mm 2000×1650×1100mm 2000×1650×1100mm
