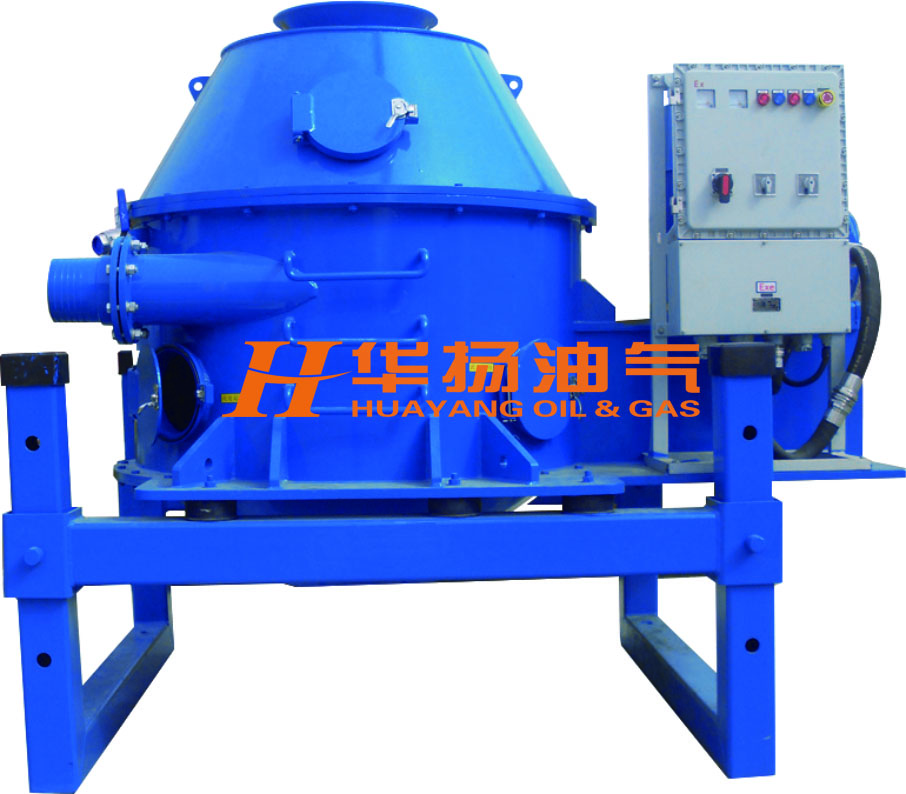

Vertical cutting dryer
| Model | HYCD930C | HYCD930B-VFD |
| Capacity（T/h） | 30-50T/h | |
| Basket Diameter | 930mm | |
| Basket Split | 0.25～0.5 | |
| Rotary Speed | 900r/min | 0～-900r/min |
| Air knife Air Inlet Pressure | 0.69 mpa | |
| Air Tool Air Supply | 1.8㎥/min | |
| Fuel Tank Volume | 60L | |
| Main Motor Power（kW) | 55kw | |
| Oil Pump Power（kW) | 0.55kw | |
| Weight | 5900kg | 5700kg |
| Dimension | 2750×2130×1800mm | |
Features and functions：
1.Rotation Speed up to 900rpm, Can form separation G-Force 420G, effectively separating the liquid from drill cuttings。
2.Unloading blade formed by the high chromium cast iron , long service life。
3.Assembly of high pressure air knives can effectively prevent the bucket blocked。
4.Each replaceable part is selected through the dynamic balance test, meet the balance of machine replacement parts。
5.Independent oil-cooling system, equipped with scientific Tank cooling systems effectively meet the requirements using in high temperature environment。
